Altitude is the silent killer of truck specifications: power drops, cooling margins shrink, pumps cavitate. CLW’s plateau contract puts the answer to the test where the air is thinnest.
3,500 m+ operating altitude class | Large order, plateau programme | Diesel altitude-compensated powertrain | CLW body & tank engineering |
Turbo-compensated power selection to hold gradeability in thin air, enlarged cooling for UV-heavy summers and −20 °C winters, tank baffling and valve packs rated for repeated freeze-thaw cycles, and insulated hose lines for early-morning desert-dust suppression runs.
|

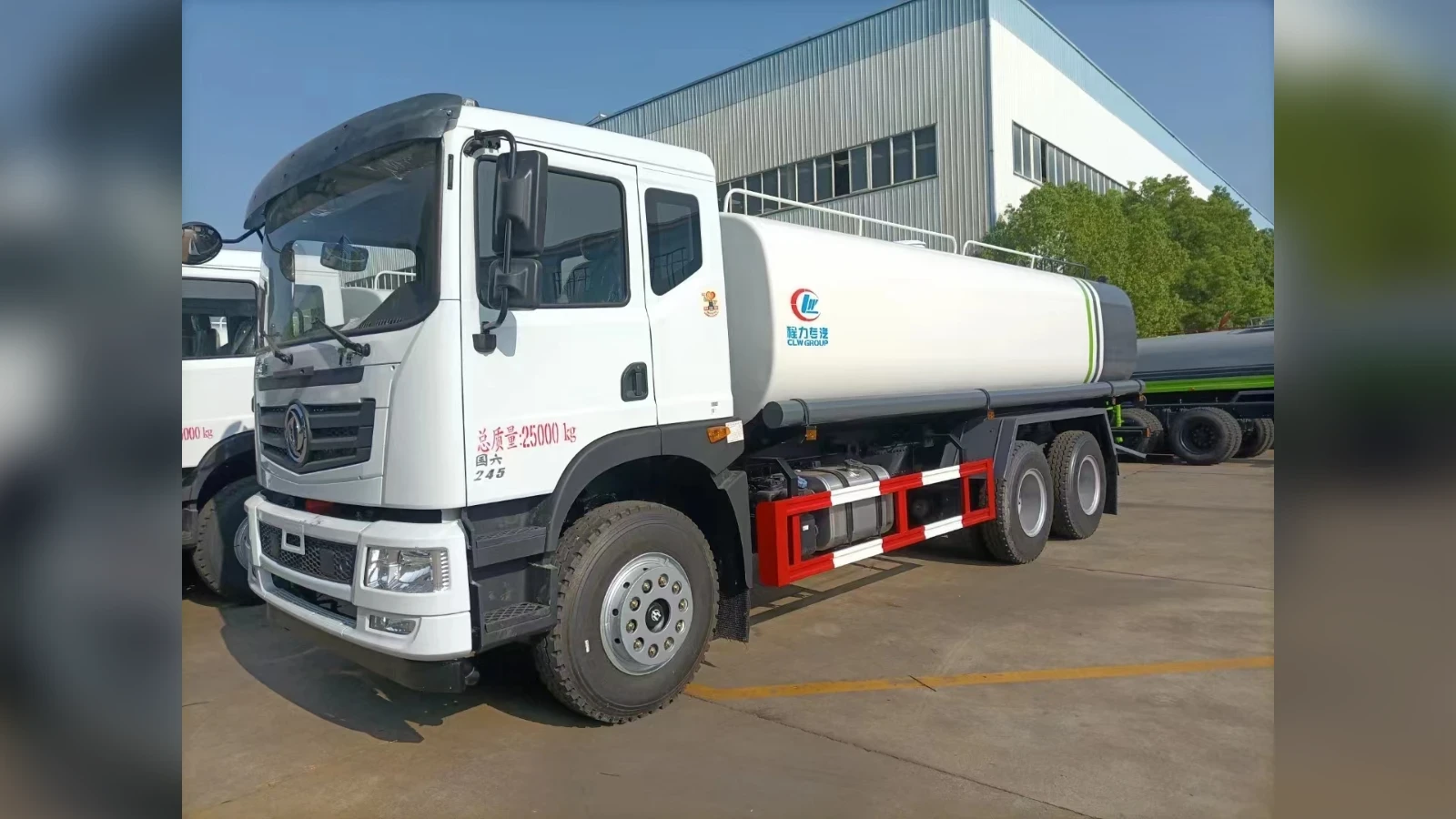

Dongfeng Huashen T5 18 cbm Sprinkler Truck for Road Washing |
||
|
General |
Vehicle Brand |
DONGFENG |
|
Total Mass |
25000 kg |
|
|
Cab |
Cab Capacity |
3 persons |
|
Air Conditioner |
Standard |
|
|
Engine |
Fuel Type |
Diesel |
|
Power |
240 HP |
|
|
Displacement |
6750 ml |
|
|
Emission Standard |
Euro 5 |
|
|
Chassis |
Drive Type |
6X4 |
|
Transmission |
Fast 9JS135TA manual |
|
|
Wheelbase |
3300+1300 mm |
|
|
Top Structure |
Tank Capacity |
18,000 L (18 m3) |
|
Tank Material |
Wuhan-steel Q235 carbon steel, body 4 mm / heads 5 mm, CNC submerged-arc welded one-piece; coating optional |
|
|
Water Pump |
Self-priming sprinkler pump — pump-in & pump-out |
|
|
Front Flush |
2 forward nozzles, sweeping width >=14 m |
|
|
Side Sprinklers |
2 side nozzles for kerb and green-belt watering |
|
|
Rear Spray |
Rear duckfoot shower, width >=28 m, with music warning horn |
|
|
Elevated Cannon |
Rear-platform greening cannon, 360-degree slew, jet / rain / mist adjustable |
|
|
Work Platform |
Rear anti-slip platform with guard rails |
|
|
Plumbing |
Ball-valve controlled; 65 mm fire-hydrant adapter; suction hoses included |
|
|
Manhole & Drain |
DN600 manhole with float valve; bottom drain for winter freeze protection |
|
|
Power Take-off |
Engine + gearbox PTO driven — no separate motor |
|
|
Documents |
GB6 emission announcement; tax-exemption catalogue; export papers provided |
|
|
Pump |
QG80/150 self-priming, 2,500 L/min |
|
|
Cannon |
Greening cannon, 28 m rear shower, 20 m fire-water |
|
Andean mining towns, East African highlands, Central Asian steppe winters — the altitude workbook transfers directly. If your city sits above 2,000 m, ask for the highland package.
Fleet for altitude or deep cold? Spec a highland CLW unit »
Tell us your truck model and quantity — an engineer replies within 12 hours with a factory-direct price.
