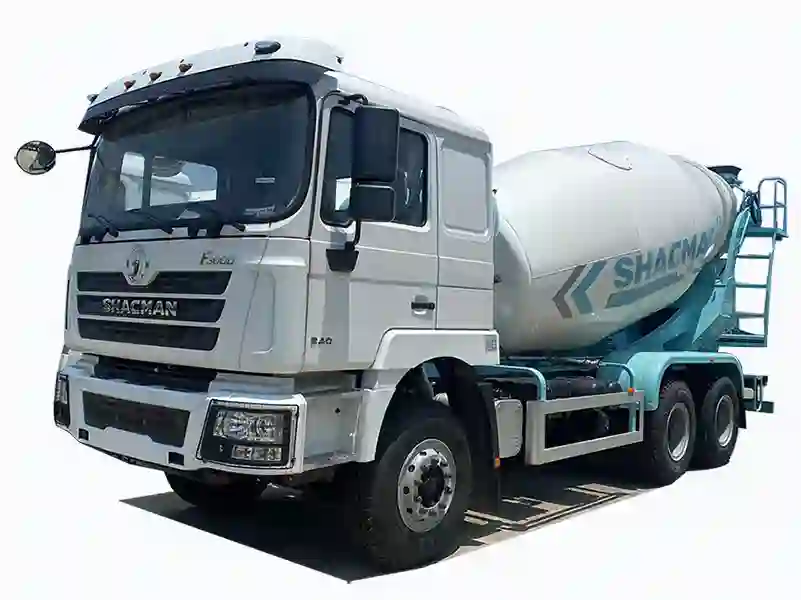

SHACMAN 6x4 10cbm Concrete Mixer for Plant Fleets

Q: What warranty and after-sales support do you provide?

Two-year warranty on the whole vehicle, lifelong genuine spare parts supply at factory price, free technical training for your maintenance team, and video/online support for installation and debugging.

Concrete stays workable because the drum never rests: this SHACMAN 6X4 mixer spins continuously in transit to prevent solidification, on a Weichai 380 hp engine with a 10-forward and 2-reverse gearbox, riding 12.00R20 tires. The effective drum is sized to the chassis with total fill approximately 1.4 times capacity, and the series spans tanker loading capacities from 6 to 20 cubic meters.

Drive hardware uses an imported motor, reducer and chain with an oil cooler, taking PTO from the engine through a clutch interlock. Charging and discharge run at 60 and 90 L per minute with residual under 0.5 percent, handling concrete from 80 to 180 mm slump as standard duty. An onboard water tank with metered spray keeps the mix and the hopper clean, while high-chrome drum blades and discharge hopper absorb abrasion. Dash-mounted drum speed control and emergency stop keep the driver in charge; ladder racks, wash-out bin provisions, telematics volume logging and side chutes are fitted for plant fleets and ready-mix delivery rounds, with a 380 L fuel tank between the frames.

WhatsApp your destination port - FOB price within 24 hours, plus the full spec sheet.

Inquiry Now

Reply within 12 hours · MOQ 1 unit · Build 15–30 days · Tell us your chassis, drive, capacity and color needs — we build to order

Factory-direct price (no trader markup) Supports 100% customization 2-year warranty + lifetime parts Full export docs (B/L, CO, invoice)

New Products

SHACMAN 6x4 35-Ton Heavy Dump Truck for Mining Hauls

HOWO 8-Stall Mobile Toilet Truck for Events & Sites

ISUZU LPG Tanker for Flammable Gas Delivery

FAW 12 meters Aerial work vehicle

SINOTRUK HOWO 4x2 5-Ton Light Dump for Sand & Gravel

SINOTRUK 371HP 6X6 Flatbed Truck with 16-Ton XCMG Crane for

SINOTRUK NX 8X4 Truck Mounted with XCMG SQZ560 Folding Crane

Geely Farizon Electric Refrigerated Truck for Green Cold Cha

IVECO Daily Transfer Ambulance for Hospital Patient Moves

FOTON View G9 Ambulance 5-7 Seats for Clinic Response

JMC Mobile Clinic Van for Community Health Screening

SINOTRUK TX Mobile Accommodation Vehicle for Field Crews & R

FORD Transit Mobile Command Vehicle with Lift LED Screen

IVECO Mobile CT Ambulance for Stroke Response

JMC Mobile Dental Van for School & Community Care

Brand New High Quality Dongfeng Warriors 4x4 Ambulance for O

IVECO 9-Seat Personnel Carrier Ambulance for Crew Moves

ISUZU 4WD Pickup Mobile Drainage Pump for Confined Flooding

IVECO Gas-Rescue Vehicle with SCBA for Confined-Space Teams

FORD T8 Monitor Ambulance Large Cabin for ICU Teams

Dongfeng T3 Bitumen Sprayer Truck for Pavement Preservation

SHACMAN M3000 Synchronous Chip Sealer for Pavement Care

SINOTRUK 6x4 Sync Chip Sealer & Binder Sprayer

SHACMAN M3000 6x4 Chip Sealer with Dual Heater

Product Details

Drum in wear-resistant steel with imported hydraulic drive, 60/90 L/min charge-discharge and residual rate under 0.5%.

SHACMAN 6x4 10cbm Concrete Mixer for Plant Fleets
General	Vehicle Brand	SHACMAN
Cab	Air Conditioner	Standard
Engine	Fuel Type	Diesel
Engine	Power	WEICHAI 380hp
Chassis	Drive Type	6X4
	Chassis Brand	SHACMAN
	Transmission	10 forward and 2 reverse gear
Top Structure	1	SHACMAN concrete mixer truck is special design for transport the concrete
	2	the tanker body always spinning when transportation, avoid the concrete solidification
	3	the tanker body loading capacity from 6-20 cubic meters.
	Drum Volume	Effective drum sized to chassis; total fill approx. 1.4x
	Hydraulic Drive	Imported motor + reducer + chain, oil cooler
	Charging/Discharge	60 / 90 L/min; residual under 0.5%
	Water System	Onboard water tank with metered spray
	Concrete Range	Slump 80-180 mm standard duty
	Wear Parts	High-chrome drum blades and discharge hopper
	Cab Controls	Dash-mounted drum speed + emergency stop
	Application	Ready-mix delivery and plant fleets
	Rear Mounts	Ladder racks and wash-out bin provisions
	Drive Line	PTO from engine with clutch interlock
	Options	Wash-out bin, telematics volume log, side chutes
	Docs	GB announcement; 2-year warranty
	Fuel Tank	380L

Key Upfit Features

1: SHACMAN concrete mixer truck is special design for transport the concrete
2: the tanker body always spinning when transportation, avoid the concrete solidification
3: the tanker body loading capacity from 6-20 cubic meters.

Factory Direct

CLW Chengli, Suizhou — ISO 9001 & CCC certified

MOQ 1 Unit

Mixed batch and stock chassis available

Export Ready

SEA / Ro-Ro / container + full documents

Lifetime Support

Genuine parts and remote commissioning

Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

FAQ About Concrete Truck

How much does this truck cost and what is the MOQ?

CLW is a factory-direct manufacturer, so you get the lowest possible price without middlemen. Final price depends on chassis brand (ISUZU, SINOTRUK, SHACMAN, DONGFENG, FOTON, JAC), tank or body capacity and equipment options. MOQ is 1 unit for most models. Send your requirement via WhatsApp +86 159 6944 9241 for a detailed quotation within 12 hours.

Can you customize the capacity, chassis and upper equipment?

Yes. With 300+ product categories and 800+ models in our MIIT catalog, we customize body capacity, dimensions, unloading systems, PTO, hydraulic equipment and cab options to your local road regulations and working conditions. Our 500+ engineers provide drawings before production.

How do you ship to my country and what is the delivery time?

We export by RoRo vessel, 40FT/40FR/40OT container or flat rack depending on dimensions, to ports in Africa, Southeast Asia, the Middle East, South America and CIS countries. Standard delivery time is 15–30 working days after deposit. Export documentation (BL, CO, CI, packing list) included.

What warranty and after-sales support do you provide?

Two-year warranty on the whole vehicle (engine and gearbox covered per chassis manufacturer policy), lifelong genuine spare parts supply at factory price, free technical training for your maintenance team, and video/online support for installation and debugging.
