Compact job-site lifting falls to a purposeful Dongfeng 4X2 package, pairing a 60 kW water-cooled four-cylinder diesel on a 3360 mm wheelbase with a straight boom crane of the 10-ton model class. The boom extends through two telescopic sections over a main arm, covering a working radius of 5.0 to 12.0 m and reaching a lifting height near 9 m, while 360-degree continuous hydraulic slewing keeps the hook on target without repositioning the truck.
H-type plus vertical outriggers with bi-directional locks stabilise the lift; an integrated winch with telescopic hook serves vertical handling, with a sub-hook optional. A gearbox PTO drives the hydraulics, so the crane operates at engine idle. Steel flat bed behind the crane carries matching cargo. Safety hardware includes a load moment limiter, anti two-block device, boom-length indicator and audible alarm. With 3000 kg rated payload on a 4000 kg gross mass, 7.00R16 tires and an 89 km/h top speed, it suits small crews lifting materials and hauling them in one pass on urban and rural sites.
WhatsApp your destination port - FOB price within 24 hours, plus the full spec sheet.
SHACMAN 6x4 35-Ton Heavy Dump Truck for Mining Hauls
HOWO 8-Stall Mobile Toilet Truck for Events & Sites
ISUZU LPG Tanker for Flammable Gas Delivery
FAW 12 meters Aerial work vehicle
SINOTRUK HOWO 4x2 5-Ton Light Dump for Sand & Gravel
SINOTRUK 371HP 6X6 Flatbed Truck with 16-Ton XCMG Crane for

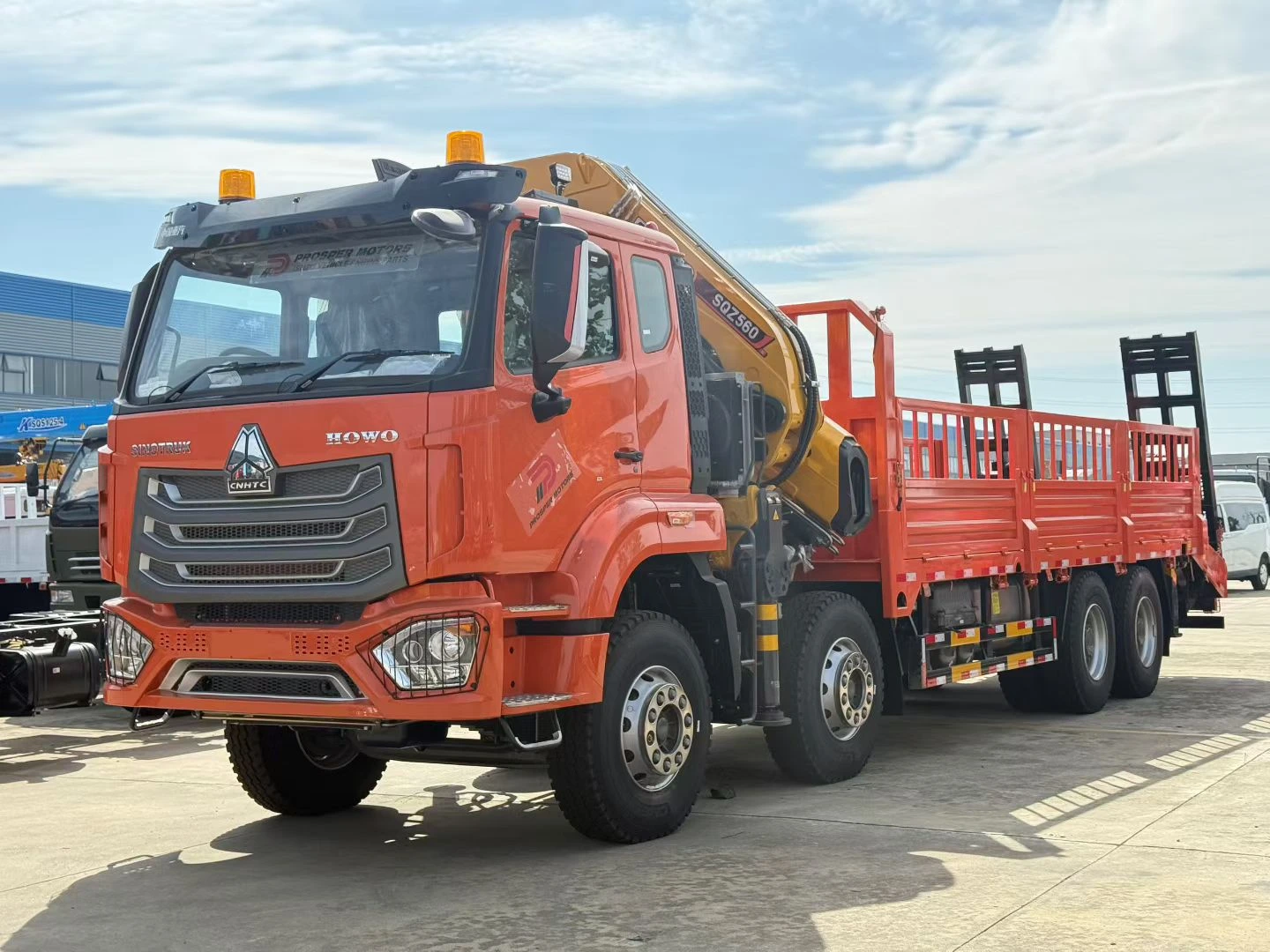

SINOTRUK NX 8X4 Truck Mounted with XCMG SQZ560 Folding Crane
Geely Farizon Electric Refrigerated Truck for Green Cold Cha
IVECO Daily Transfer Ambulance for Hospital Patient Moves
FOTON View G9 Ambulance 5-7 Seats for Clinic Response
JMC Mobile Clinic Van for Community Health Screening
SINOTRUK TX Mobile Accommodation Vehicle for Field Crews & R
FORD Transit Mobile Command Vehicle with Lift LED Screen
IVECO Mobile CT Ambulance for Stroke Response
JMC Mobile Dental Van for School & Community Care
Brand New High Quality Dongfeng Warriors 4x4 Ambulance for O
IVECO 9-Seat Personnel Carrier Ambulance for Crew Moves
ISUZU 4WD Pickup Mobile Drainage Pump for Confined Flooding
IVECO Gas-Rescue Vehicle with SCBA for Confined-Space Teams
FORD T8 Monitor Ambulance Large Cabin for ICU Teams
Dongfeng T3 Bitumen Sprayer Truck for Pavement Preservation
SHACMAN M3000 Synchronous Chip Sealer for Pavement Care
SINOTRUK 6x4 Sync Chip Sealer & Binder Sprayer
SHACMAN M3000 6x4 Chip Sealer with Dual Heater
Cargo bed plus integrated crane from one factory — XCMG/Chengli boom matched to axle rating, outriggers and winch configured for your job profile.
| Dongfeng 10-Ton Truck-Mounted Crane for Site Lifting | ||
| General | Vehicle Brand | DONGFENG |
| Overall Dimension | 5995*2280*3000 mm | |
| Rated Load Capacity | 3000 kg | |
| Total Mass | 4000 kg | |
| Cab | Air Conditioner | Standard |
| Engine | Fuel Type | Diesel |
| Power | 60kw | |
| Displacement | 3070 ml | |
| Chassis | Drive Type | 4X2 |
| Chassis Brand | DONGFENG | |
| Wheelbase | 3360 mm | |
| Top Structure | Crane Model | 10-ton straight boom crane |
| Max Lifting | 10-ton (t·m class) max hook load | |
| Working Radius | 5.0-12.0 m radius, multi-section straight/knuckle boom | |
| Rotation | 360-degree continuous slewing, hydraulic | |
| Outriggers | H + vertical hydraulic outriggers with bi-directional locks | |
| Winch & Hook | Integrated winch, telescopic hook; sub-hook option | |
| Cargo Bed | Steel cargo box/flat bed behind crane for the same-truck haul | |
| Hydraulics | Two-stage gear pump, relief + counterbalance valves, oil cooler | |
| Safety | Load moment limiter, anti two-block, boom-length indicator, audible alarm | |
| Power | Gearbox PTO driven — crane works with engine idling | |
| Options | Wireless remote, rear extensions, alloy bed, winch sub-hook | |
| Application | Site lifting and material handling | |
| Docs & Warranty | GB announcement + tax exemption; 2-year upfit warranty, lifetime parts | |
| Stand Configuration | Flat proof, single row, radio, sound and so on | |
| Engine type | 4 stroke, water-cooled, straight line 4 cylinders, diesel | |
| Crane Brand | UNIC, HIAB, XCMG, SHIMEl, etc | |
| Crane type | Straight arm type, two sections telescopic booms and one main boom | |
| Max lift quality(kg) | 2000, option 3.2ton or bigger | |
| Max. Lifting Height(m) | 9m | |
Key Upfit Features
Factory Direct CLW Chengli, Suizhou — ISO 9001 & CCC certified | MOQ 1 Unit Mixed batch and stock chassis available | Export Ready SEA / Ro-Ro / container + full documents | Lifetime Support Genuine parts and remote commissioning |
