Knuckle Boom Crane

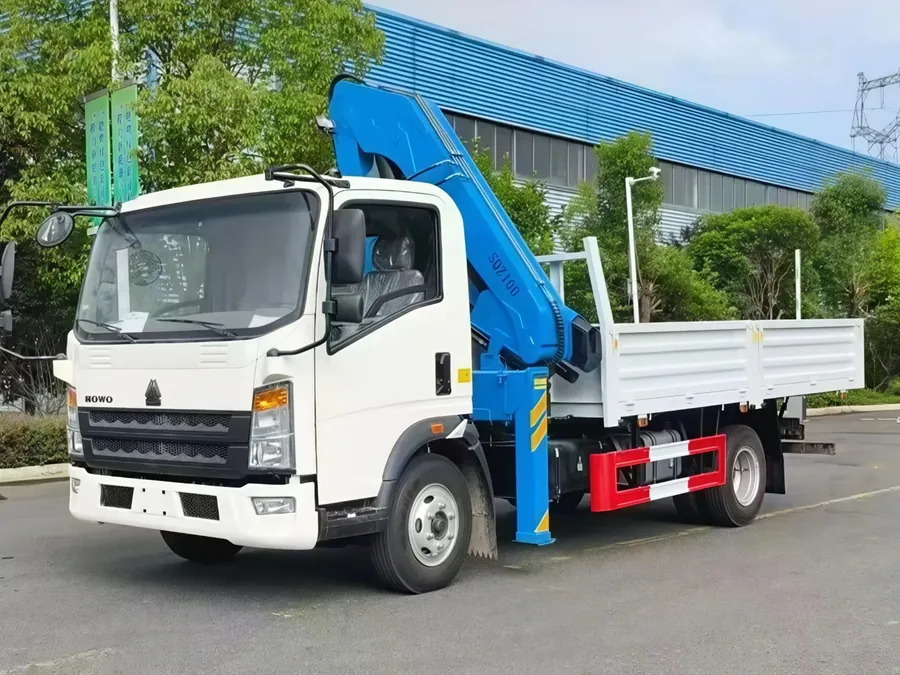

HOWO 4x2 Folding Boom Truck Mounted Crane for Sale SQZ100 Hydraulic Knuckle Boom Self Loader Truck

This HOWO 4x2 folding boom truck mounted crane is a practical all-in-one vehicle for loading, transporting and unloading. Equipped with a SQZ100 hydraulic knuckle boom, it delivers 360° continuous rotation and stable hydraulic outriggers, suitable for narrow construction sites, city streets and warehouse yards. The drop-side steel cargo bed carries steel pipes, pallets, machinery and building materials without a separate crane. Powered by a reliable SINOTRUK HOWO diesel engine and manual gearbox, it offers long working life and low maintenance cost. We support LHD and RHD versions, Euro 2 to Euro 6 emissions, and can customize crane tonnage, bed size and color to meet your market. Exported to Africa, Southeast Asia, the Middle East, South America and Central Asia with CE, ISO certification, complete documents and two-year warranty. Contact us for the latest factory price and lead time.

Inquiry Now
Reply within 12 hours · MOQ 1 unit · Build 15–30 days · Tell us your chassis, drive, capacity and color needs — we build to order
Factory-direct price (no trader markup) Supports 100% customization 2-year warranty + lifetime parts Full export docs (B/L, CO, invoice)

This HOWO 4x2 folding boom truck mounted crane is a practical all-in-one vehicle for loading, transporting and unloading. Equipped with a SQZ100 hydraulic knuckle boom, it delivers 360° continuous rotation and stable hydraulic outriggers, suitable for narrow construction sites, city streets and warehouse yards. The drop-side steel cargo bed carries steel pipes, pallets, machinery and building materials without a separate crane. Powered by a reliable SINOTRUK HOWO diesel engine and manual gearbox, it offers long working life and low maintenance cost. We support LHD and RHD versions, Euro 2 to Euro 6 emissions, and can customize crane tonnage, bed size and color to meet your market. Exported to Africa, Southeast Asia, the Middle East, South America and Central Asia with CE, ISO certification, complete documents and two-year warranty. Contact us for the latest factory price and lead time.

Looking for a compact self loading crane truck. This SINOTRUK HOWO 4x2 folding boom truck mounted crane combines a reliable light duty chassis with a SQZ100 hydraulic knuckle boom and a drop side steel cargo bed. It loads, transports and unloads by itself, no separate crane needed, which cuts your fleet cost by one vehicle. Available in LHD or RHD, with factory direct pricing and worldwide shipping.

HOWO 4x2 Folding Boom Truck Mounted Crane for Sale SQZ100 Hydraulic Knuckle Boom Self Loader Truck

Basic Information

Product Name

SINOTRUK HOWO 4x2 Folding Boom Truck Mounted Crane

Product Model

CLW518YTZ1

Chassis Brand

SINOTRUK HOWO

Drive Type

4X2 (single front axle, single rear axle)

Cab

HOWO wide single-row cab, tiltable

Steering

LHD / RHD optional

Chassis Parameter

Engine Brand

SINOTRUK / Weichai / Yunnei diesel engine

Engine Power

140-200 HP (approx. 103-147 kW)

Emission Standard

Euro II / Euro III / Euro V / Euro VI optional

Transmission

Manual 6-8 speed (HW series)

Front Axle

Single steering axle, rated load 3.5-4.5 t

Rear Axle

Single drive axle, rated load 8-10 t

Tire Size

8.25R20 / 9.00R20 steel radial tire, 1 spare included

Wheelbase

3300-3900 mm (per official announcement)

Overall Dimension

approx. 6800 x 2200 x 3100 mm

Gross Vehicle Weight

approx. 12000-16000 kg

Rated Payload

approx. 5000-8000 kg

Max Speed

approx. 95-100 km/h

Crane Parameters

Crane Model

SQZ100

Crane Type

Folding boom (knuckle boom)

Crane Color

Blue

Max Lifting Moment

approx. 100 kN.m (approx. 10 t.m)

Max Lifting Capacity

approx. 2000-4000 kg (per nameplate)

Max Working Radius

approx. 6-8 m

Max Lifting Height

approx. 7-9 m

Rotation Angle

360 degree continuous rotation

Hydraulic System Pressure

approx. 16-20 MPa

Power Source

PTO driven hydraulic pump

Outrigger Type

Hydraulic telescopic outriggers with stabilizers

Outrigger Span

approx. 4.5-5.5 m

Cargo Body

Body Type

Drop-side steel cargo bed

Bed Size

approx. 4000 x 2200 x 550 mm (per announcement)

Bed Material

High-strength checkered steel plate

Optional Attachments

Hook, grab, man basket, winch

Other Configuration

Brake System

Air brake / Air brake with ABS

Suspension

Leaf spring suspension

Fuel Tank Capacity

approx. 150-200 L

Electrical System

24 V

Color

White cab, blue crane, white cargo bed (customizable)

Application

Construction material transport, site lifting, municipal maintenance, logistics self-loading
