Asphalt Distributor Truck

ISUZU 6cbm Insulated Bitumen Sprayer with Riello Burner

Q: What warranty and after-sales support do you provide?

Two-year warranty on the whole vehicle, lifelong genuine spare parts supply at factory price, free technical training for your maintenance team, and video/online support for installation and debugging.

Small-footprint seal programs want heat quickly without hauling a full tank, and this ISUZU 4x2 distributor keeps the volume modest at 3 m3. Insulation follows the family standard of carbon steel, 50 mm rock-wool, stainless cladding and a serpentine heating circuit, but here the thermal oil boiler is fired by a Riello diesel burner with low-NOx combustion and automatic ignition, holding bitumen between 120 C and 180 C without scorching. A gear or hydraulic pump delivers 0-5 L/m2 steplessly with speed-linked control and metering; the rear dual spray bars are set to a 3 m pattern inside the 2.5-6 m adjustable envelope, with per-header nozzle shut-off preventing drips at pass ends. Recirculation stirring keeps temperature uniform between tack and prime coats. Filling uses a top strainer manhole or a side line from drum or plant, and an onboard diesel compressor services purge air. GPS dosing maps, infrared kits or a second header can be added for municipal upkeep.

WhatsApp your destination port - FOB price within 24 hours, plus the full spec sheet.

Inquiry Now

Reply within 12 hours · MOQ 1 unit · Build 15–30 days · Tell us your chassis, drive, capacity and color needs — we build to order

Factory-direct price (no trader markup) Supports 100% customization 2-year warranty + lifetime parts Full export docs (B/L, CO, invoice)

New Products

SHACMAN 6x4 35-Ton Heavy Dump Truck for Mining Hauls

HOWO 8-Stall Mobile Toilet Truck for Events & Sites

ISUZU LPG Tanker for Flammable Gas Delivery

FAW 12 meters Aerial work vehicle

SINOTRUK HOWO 4x2 5-Ton Light Dump for Sand & Gravel

SINOTRUK 371HP 6X6 Flatbed Truck with 16-Ton XCMG Crane for

SINOTRUK NX 8X4 Truck Mounted with XCMG SQZ560 Folding Crane

Geely Farizon Electric Refrigerated Truck for Green Cold Cha

IVECO Daily Transfer Ambulance for Hospital Patient Moves

FOTON View G9 Ambulance 5-7 Seats for Clinic Response

JMC Mobile Clinic Van for Community Health Screening

SINOTRUK TX Mobile Accommodation Vehicle for Field Crews & R

FORD Transit Mobile Command Vehicle with Lift LED Screen

IVECO Mobile CT Ambulance for Stroke Response

JMC Mobile Dental Van for School & Community Care

Brand New High Quality Dongfeng Warriors 4x4 Ambulance for O

IVECO 9-Seat Personnel Carrier Ambulance for Crew Moves

ISUZU 4WD Pickup Mobile Drainage Pump for Confined Flooding

IVECO Gas-Rescue Vehicle with SCBA for Confined-Space Teams

FORD T8 Monitor Ambulance Large Cabin for ICU Teams

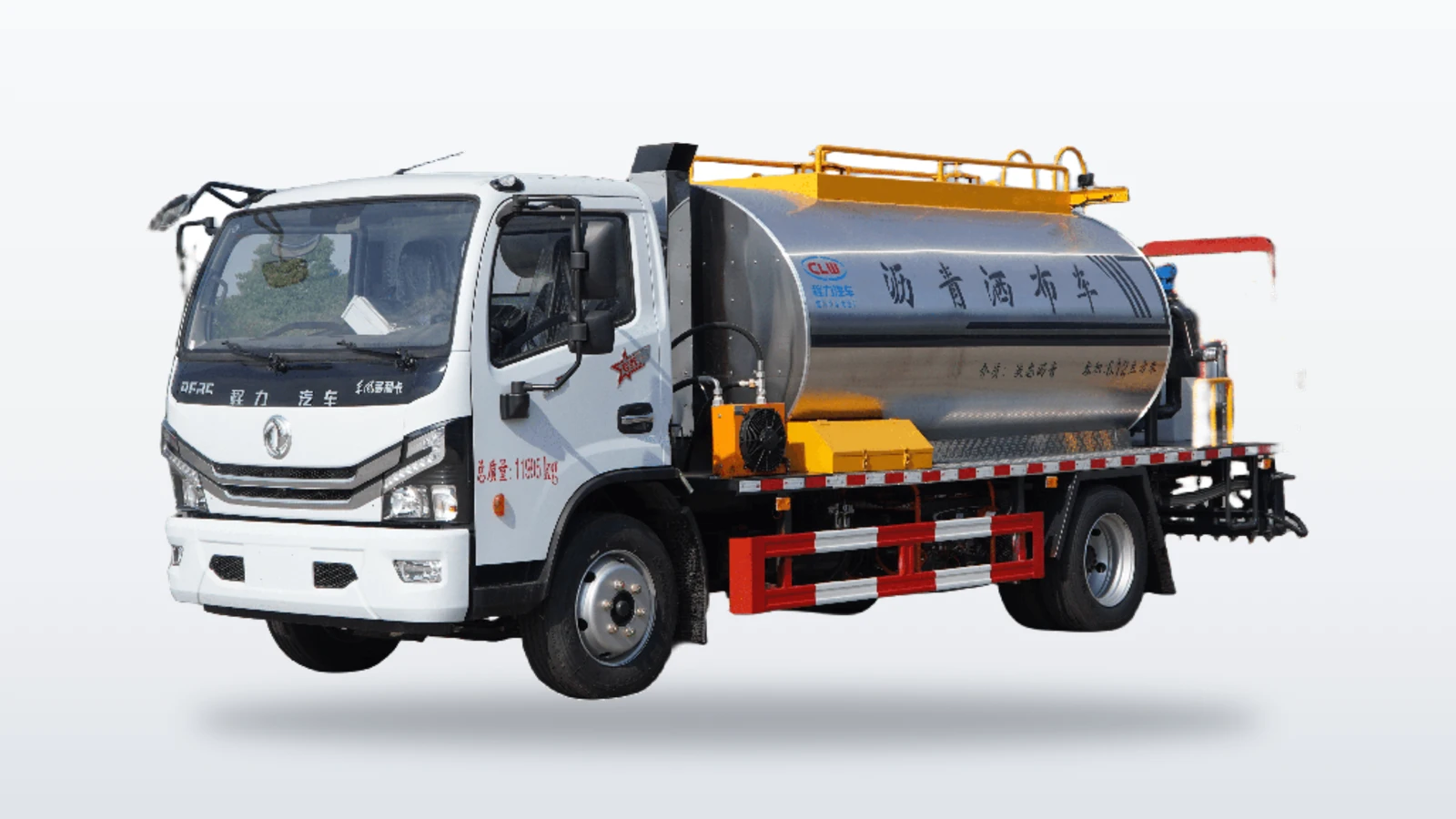

Dongfeng T3 Bitumen Sprayer Truck for Pavement Preservation

SHACMAN M3000 Synchronous Chip Sealer for Pavement Care

SINOTRUK 6x4 Sync Chip Sealer & Binder Sprayer

SHACMAN M3000 6x4 Chip Sealer with Dual Heater

Product Details

WhatsApp your destination port - FOB price within 24 hours, plus the full spec sheet.

Road-maintenance machine engineered in Suizhou: PLC control, diesel-heated tank and wear-resistant system, calibrated and test-driven before shipment.

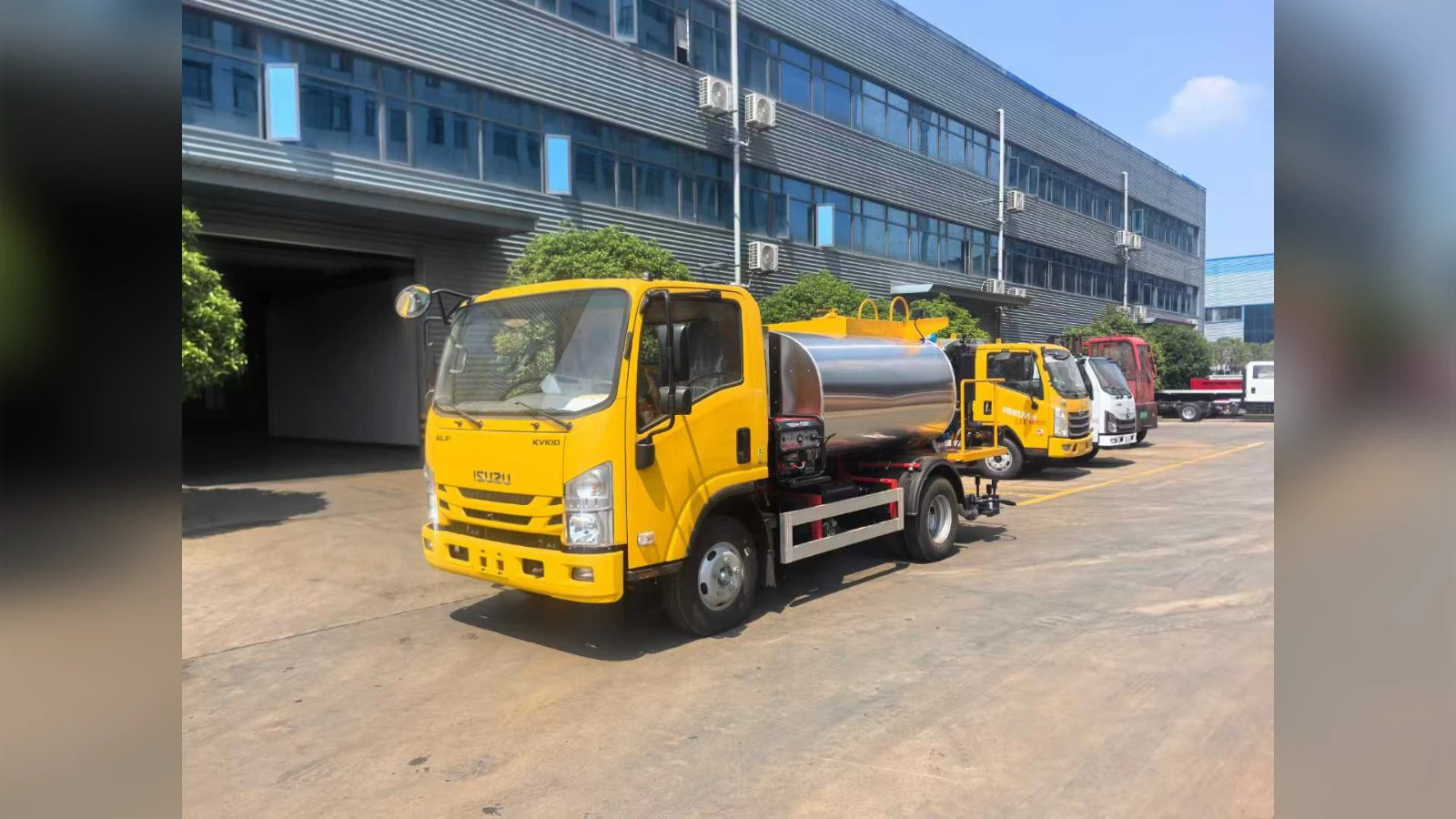

ISUZU 6cbm Insulated Bitumen Sprayer with Riello Burner
General	Vehicle Brand	ISUZU
Cab	Air Conditioner	Standard
Chassis	Drive Type	4X2
Chassis	Chassis Brand	ISUZU
Top Structure	Asphalt Tank	3 m3
	Tank Build	Carbon steel with 50 mm rock-wool + stainless cladding insulation; serpentine heating circuit
	Heating System	Diesel-fired thermal oil boiler (standard) — bitumen kept 120-180 C without scorching
	Bitumen Pump	Gear/hydraulic pump with stepless flow control, 0-5 L/m2
	Spray Bar	Rear dual spray bars, width 2.5-6 m adjustable; auto nozzle shut-off per header
	Control	Manual valve control with flow meter and speed-linked pump drive
	Stirring & Recirc	Bitumen stirrer/recirculation for even temperature, no segregation
	Fill Options	Top-fill via strainer manhole; side pump-in from drum or plant line
	Compressor	Onboard diesel compressor for nozzle purge and atomizing air
	Application	Tack and prime coats, seal programs
	Options	Infrared heating kit, GPS dosing map, second spray header, front sprayer
	Docs & Warranty	GB announcement; 2-year upfit warranty, lifetime parts
	Burner	Riello diesel-fired heating unit, low-NOx, auto ignition
	Spraying Width	3 m

Key Upfit Features

Asphalt Tank: 3 m3
Tank Build: Carbon steel with 50 mm rock-wool + stainless cladding insulation; serpentine heating circuit
Heating System: Diesel-fired thermal oil boiler (standard) — bitumen kept 120-180 C without scorching

Factory Direct

CLW Chengli, Suizhou — ISO 9001 & CCC certified

MOQ 1 Unit

Mixed batch and stock chassis available

Export Ready

SEA / Ro-Ro / container + full documents

Lifetime Support

Genuine parts and remote commissioning

Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

FAQ About Road Construction Truck

How much does this truck cost and what is the MOQ?

CLW is a factory-direct manufacturer, so you get the lowest possible price without middlemen. Final price depends on chassis brand (ISUZU, SINOTRUK, SHACMAN, DONGFENG, FOTON, JAC), tank or body capacity and equipment options. MOQ is 1 unit for most models. Send your requirement via WhatsApp +86 159 6944 9241 for a detailed quotation within 12 hours.

Can you customize the capacity, chassis and upper equipment?

Yes. With 300+ product categories and 800+ models in our MIIT catalog, we customize body capacity, dimensions, unloading systems, PTO, hydraulic equipment and cab options to your local road regulations and working conditions. Our 500+ engineers provide drawings before production.

How do you ship to my country and what is the delivery time?

We export by RoRo vessel, 40FT/40FR/40OT container or flat rack depending on dimensions, to ports in Africa, Southeast Asia, the Middle East, South America and CIS countries. Standard delivery time is 15–30 working days after deposit. Export documentation (BL, CO, CI, packing list) included.

What warranty and after-sales support do you provide?

Two-year warranty on the whole vehicle (engine and gearbox covered per chassis manufacturer policy), lifelong genuine spare parts supply at factory price, free technical training for your maintenance team, and video/online support for installation and debugging.
