Asphalt Distributor Truck

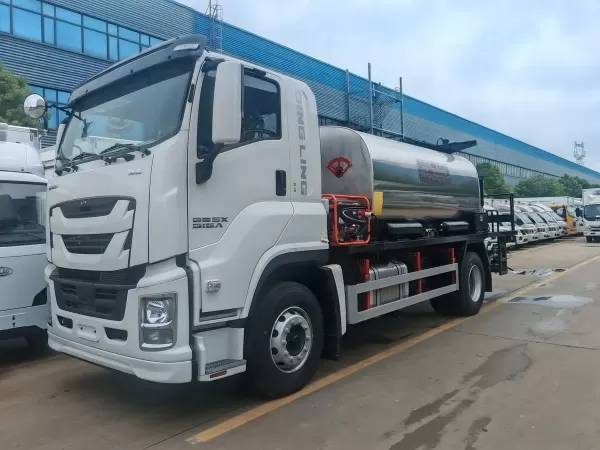

ISUZU FTR 4x2 10CBM Intelligent Asphalt Distributor Truck 205HP Automatic Bitumen Spreader Truck For Road Pavement Maintenance

This ISUZU FTR intelligent asphalt distributor truck adopts Isuzu FTR 4×2 Euro‑VI chassis, equipped with 10 cubic meters stainless steel thermal‑insulated asphalt tank and independent 35HP auxiliary engine. It is featured with intelligent PLC control system, realizing speed linkage automatic spraying, each nozzle can be independently switched on or off. Dual‑control operation is available both in cab and rear working platform. Support spraying hot asphalt, emulsified asphalt and modified asphalt. Widely applied for prime coat, bonding coat, sealing layer construction for highway and municipal roads. Tank volume, spraying width and related configurations can be customized according to customer requirements.

Inquiry Now
Reply within 12 hours · MOQ 1 unit · Build 15–30 days · Tell us your chassis, drive, capacity and color needs — we build to order
Factory-direct price (no trader markup) Supports 100% customization 1-year warranty + lifetime parts Full export docs (B/L, CO, invoice)

Road Construction Truck is a specialized vehicle used in various stages of road construction and maintenance projects. These trucks are essential for transporting materials, equipment, and personnel to and from construction sites.

ISUZU GIGA 4x2 Asphalt Distributor Bitumen Sprayer Truck with Smart Metering

General

Cab

Isuzu new FTR single row,3 seats,with A/C,USB

Dimension (L×W×H)

8350×2500×3150 mm

GVW/Curb weight

16000/7850kg

Drive Type

4×2,LHD

Max speed

95km/h

Engine

Engine Type

4 cylinders in line, 4?stroke,water cooling, turbo?charged diesel engine, inter?cooling

Engine model

Isuzu 4HK1?TC60

Horse power

205HP/150kw

Fuel Type

Diesel

Emission Standard

Euro 6

Displacement

5193ml

Auxiliary Engine Model

4TE35A?39A

Auxiliary Engine Power

26 Kw/35HP

Chassis

Chassis Brand

Isuzu

Wheelbase

4500mm

Tire No.

6+1

Tire size

295/80R22.5

Axle No.

2

Steering Wheel

With power?assisted

Gear Box

Isuzu MLD 6 speed forward with 1 reverse, manual

Brake

Air brake

Superstructure

Tank Material

Stainless steel asphalt tank with multi?layer thermal insulation

Tank Capacity

10m³, customizable

Heating System

Diesel burner heating system, heat?conducting oil circulation heating

Spray Bar

Rear hydraulic folding asphalt spray bar

Spray Nozzles

Independently controlled nozzles, single nozzle on/off control

Asphalt Pump

Hydraulic asphalt pump driven by auxiliary power unit

Control System

Intelligent PLC touch screen control, cab & rear platform dual?control mode

Intelligent Function

Speed linkage spraying, spraying quantity automatic adjustment, real?time parameter display

Insulation

High?efficiency thermal insulation layer, stable asphalt working temperature

Platform

Rear anti?slip working platform with safety handrail

Cleaning System

Diesel flushing & compressed air pipeline cleaning system

Accessories

Hand spray gun for partial repairing, maintenance ladder, integrated tool storage box

Key Upfit Features

  • Tank: Insulated bitumen tank, stainless inner shell with rock-wool + aluminium outer cladding
  • Heating: Diesel-fired hot-oil burner with automatic temperature control, stirring during transport
  • Spray System: Rear spray bar with individually controlled nozzles, partial-width spraying
  • Control System: Intelligent PLC touch screen control, cab & rear platform dual-control mode
  • Intelligent Function: Speed linkage spraying, spraying quantity automatic adjustment, real-time parameter display
  • Cleaning System: Diesel flushing & compressed air pipeline cleaning system
  • Accessories: Hand spray gun for partial repairing, maintenance ladder, integrated tool storage box
  • Platform: Rear anti-slip working platform with safety handrail

Factory Direct

CLW Chengli, Suizhou – ISO 9001 & CCC certified

MOQ 1 Unit

Mixed batch and stock chassis available

Export Ready

SEA / Ro-Ro / container + full documents

Lifetime Support

Genuine parts and remote commissioning
Send A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Subject : ISUZU FTR 4x2 10CBM Intelligent Asphalt Distributor Truck 205HP Automatic Bitumen Spreader Truck For Road Pavement Maintenance
Related Products
You may be interested in the following products...

FAQ About Road Construction Truck

How much does this truck cost and what is the MOQ?
CLW is a factory-direct manufacturer, so you get the lowest possible price without middlemen. Final price depends on chassis brand (ISUZU, SINOTRUK, SHACMAN, DONGFENG, FOTON, JAC), tank or body capacity and equipment options. MOQ is 1 unit for most models. Send your requirement via WhatsApp +86 159 6944 9241 for a detailed quotation within 12 hours.
Can you customize the capacity, chassis and upper equipment?
Yes. With 300+ product categories and 800+ models in our MIIT catalog, we customize body capacity, dimensions, unloading systems, PTO, hydraulic equipment and cab options to your local road regulations and working conditions. Our 500+ engineers provide drawings before production.
How do you ship to my country and what is the delivery time?
We export by RoRo vessel, 40FT/40FR/40OT container or flat rack depending on dimensions, to ports in Africa, Southeast Asia, the Middle East, South America and CIS countries. Standard delivery time is 15–30 working days after deposit. Export documentation (BL, CO, CI, packing list) included.
What warranty and after-sales support do you provide?
One-year warranty on the whole vehicle (engine and gearbox covered per chassis manufacturer policy), lifelong genuine spare parts supply at factory price, free technical training for your maintenance team, and video/online support for installation and debugging.
