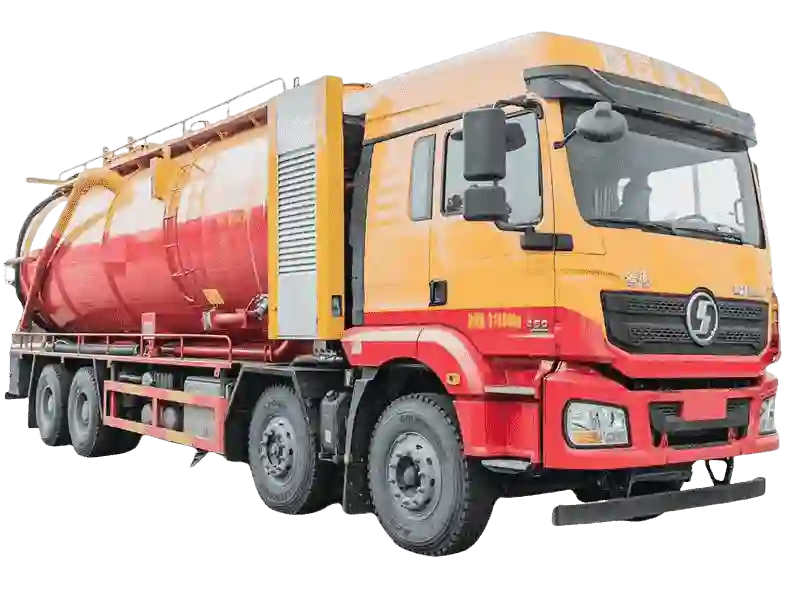

Depot shuttles move on this Shacman M3000 8x4 vacuum tanker, a 294 kW (399 hp) diesel of 11596 ml under 31000 kg gross mass with 11320 kg payload, riding twelve tyres across 1800+4575+1400 mm spacing. The elliptical sealed tank works a dual role: independent clean water and sewage compartments, which cannot both run full simultaneously, feed washing and suction functions separately, and the tank body lifts for discharge. A liquid-ring dual-stage vacuum pump reaches -0.09 MPa, sucking vertically to 9 m through a float check valve; a solid-liquid separator basket blocks rags and stones, while a sight gauge with automatic cut-off plus vacuum and pressure relief guards the fill. The rear open hood presents a quick suction port with 6 m of hose; corrosion-resistant lining and stainless fittings face sewer chemistry. Cab and rear panels run with safety interlocks; options cover high-pressure jetting, a sludge pump and GPS. High-volume depot and industrial waste cycles mark its calendar. WhatsApp your destination port - FOB price within 24 hours, plus the full spec sheet.
High-vacuum sewage system with liquid-ring pump, rear open hood and stainless tanks — built for urban sanitation and industrial waste hauling.
| SHACMAN M3000 25cbm Sewage Suction for Depot Duty | ||
| General | Vehicle Brand | SHACMAN |
| Overall Dimension | 12000X2550X3850,3950 mm | |
| Rated Load Capacity | 11320 kg | |
| Total Mass | 31000 kg | |
| Cab | Air Conditioner | Standard |
| Engine | Fuel Type | Diesel |
| Power | 294kw/399hp | |
| Displacement | 11596 ml | |
| Chassis | Drive Type | 8X4 |
| Chassis Brand | SHACMAN | |
| Wheelbase | 1800+4575+1400 mm | |
| Top Structure | 1 | The side/rear protection materials are all Q235, the side protection is bolted and welded, the rear protection is welded, the rear protection cross-section size is 320mm×50mm, and the lower edge is 500mm above the ground; |
| 2 | The effective volume of the clean water tank is 11.81 cubic meters, the medium is water, and the density is 1000 kg/cubic meter; | |
| 3 | The effective volume of the sewage tank is 14.77 cubic meters, the medium is liquid sewage, and the density is 800 kg/cubic meter. | |
| 4 | The overall dimensions of the tank body are (length×diameter) (mm): 7750 (including the straight section length 7050)×2330, of which the front section of the tank body is the clean water tank (straight section length 3100mm); the rear section is the sewage tank (straight section length 3950mm). | |
| 5 | The clean water tank and the sewage tank are independent and cannot be fully loaded at the same time. The clean water tank is used for the cleaning function, and the sewage tank is used for the sewage suction function. The tank body has a lifting function; | |
| Tank Volume | 25 m3 sealed sewage tank, elliptical | |
| Vacuum System | High-capacity liquid-ring/dual-stage vacuum pump, max -0.09 MPa | |
| Suction Depth | Up to 9 m vertical suction with float check valve | |
| Discharge | Full-tip hydraulic lift or pressure discharge; anti-overflow valve | |
| Rear Hood | Rear open hood with quick suction port + 6 m hose | |
| Separator | Solid-liquid separator basket for rag/stone protection | |
| Level & Safety | Sight gauge + auto cut-off; vacuum/pressure relief | |
| Piping | Corrosion-resistant lining and stainless fittings | |
| Control | Cab + rear panel with safety interlocks | |
| Application | High-volume depot and industrial waste | |
| Options | High-pressure jetting, sludge pump, GPS, waste manifest locker | |
| Docs | GB announcement; 2-year warranty | |
