FOTON's mini refrigerated truck keeps 5 m3 chilled inside a 2795x1545x1535 mm box of hot-pressed panels, fiberglass skins front and back over 80-100 mm XPS/PUR foam with a zero-thermal-bridge layup. The powertrain steps away from diesel convention: a DAM15KR Dongan gasoline engine of 115 HP selectable, five forward speeds and one reverse, air brakes, on a 3070 mm wheelbase carrying 1000 kg rated load at 100 km/h on 175R14LT 6PR tires.
A compact direct-drive refrigeration unit with electric standby holds 0 C to +8 C, with a -15 C frozen option, driving air through ceiling T-guide channels to every wall. Aluminum T-bar flooring drains and carries pallet traffic; 270-degree rear barn doors use stainless hardware and curtain strips, with gas struts and freeze-resistant seals. A temperature recorder, probe and over-temperature alarm log each run. Meat rails, a partition bulkhead, tail lift, E-track and a diesel backup unit finish the convenience-store replenishment specification.
WhatsApp your destination port - FOB price within 24 hours, plus the full spec sheet.
SHACMAN 6x4 35-Ton Heavy Dump Truck for Mining Hauls
HOWO 8-Stall Mobile Toilet Truck for Events & Sites
ISUZU LPG Tanker for Flammable Gas Delivery
FAW 12 meters Aerial work vehicle
SINOTRUK HOWO 4x2 5-Ton Light Dump for Sand & Gravel
SINOTRUK 371HP 6X6 Flatbed Truck with 16-Ton XCMG Crane for
SINOTRUK NX 8X4 Truck Mounted with XCMG SQZ560 Folding Crane
Geely Farizon Electric Refrigerated Truck for Green Cold Cha
IVECO Daily Transfer Ambulance for Hospital Patient Moves
FOTON View G9 Ambulance 5-7 Seats for Clinic Response
JMC Mobile Clinic Van for Community Health Screening
SINOTRUK TX Mobile Accommodation Vehicle for Field Crews & R
FORD Transit Mobile Command Vehicle with Lift LED Screen
IVECO Mobile CT Ambulance for Stroke Response
JMC Mobile Dental Van for School & Community Care
Brand New High Quality Dongfeng Warriors 4x4 Ambulance for O
IVECO 9-Seat Personnel Carrier Ambulance for Crew Moves
ISUZU 4WD Pickup Mobile Drainage Pump for Confined Flooding
IVECO Gas-Rescue Vehicle with SCBA for Confined-Space Teams
FORD T8 Monitor Ambulance Large Cabin for ICU Teams
Dongfeng T3 Bitumen Sprayer Truck for Pavement Preservation
SHACMAN M3000 Synchronous Chip Sealer for Pavement Care
SINOTRUK 6x4 Sync Chip Sealer & Binder Sprayer
SHACMAN M3000 6x4 Chip Sealer with Dual Heater
FOTON's mini refrigerated truck keeps 5 m3 chilled inside a 2795x1545x1535 mm box of hot-pressed panels, fiberglass skins front and back over 80-100 mm XPS/PUR foam with a zero-thermal-bridge layup. The powertrain steps away from diesel convention: a DAM15KR Dongan gasoline engine of 115 HP selectable, five forward speeds and one reverse, air brakes, on a 3070 mm wheelbase carrying 1000 kg rated load at 100 km/h on 175R14LT 6PR tires. A compact direct-drive refrigeration unit with electric standby holds 0 C to +8 C, with a -15 C frozen option, driving air through ceiling T-guide channels to every wall. Aluminum T-bar flooring drains and carries pallet traffic; 270-degree rear barn doors use stainless hardware and curtain strips, with gas struts and freeze-resistant seals. A temperature recorder, probe and over-temperature alarm log each run. Meat rails, a partition bulkhead, tail lift, E-track and a diesel backup unit finish the convenience-store replenishment specification. WhatsApp your destination port - FOB price within 24 hours, plus the full spec sheet.
FRP insulated box with XPS panels and imported refrigeration unit, keeping -15 C to +8 C for meat, fruit, vaccine and frozen goods cold-chain distribution.

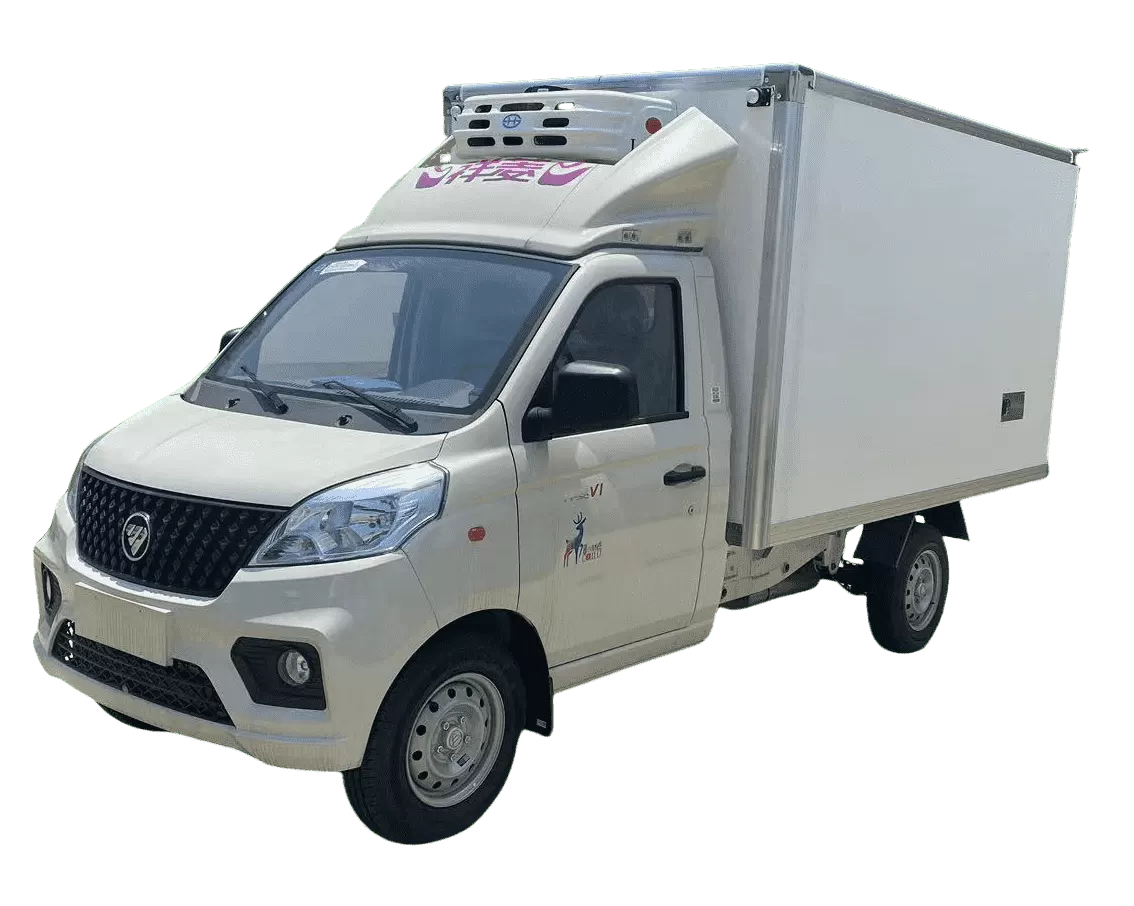

| FOTON 1-2 Ton Mini Refrigerated Truck for Store Runs | ||
| General | Vehicle Brand | FOTON |
| Overall Dimension | 4960x1720x2385 mm | |
| Rated Load Capacity | 1000 kg | |
| Cab | Air Conditioner | Standard |
| Engine | Fuel Type | Diesel |
| Power | DAM15KR Dongan gasoline engine 115hp | |
| Chassis | Drive Type | 4X2 |
| Chassis Brand | FOTON | |
| Transmission | 5 forward gears & 1 reverse Air brake | |
| Wheelbase | 3070 mm | |
| Top Structure | Box Volume | 5 m3 insulated cargo box |
| Box Panel | FRP inner/outer skins + XPS/PUR foam 80-100 mm, hot-pressed one-piece, zero thermal bridge | |
| Temperature Range | 0 C to +8 C (frozen option -15) | |
| Refrigeration Unit | Compact direct-drive electric standby unit | |
| Floor | Aluminum T-bar anti-slip floor with drainage, forklift rated | |
| Doors | Rear double doors 270-degree, stainless hardware, curtain strips + side door option | |
| Air Distribution | Ceiling T-guide channel for full-box airflow | |
| Monitoring | Temperature recorder + probe; over-temperature alarm (GPS telematics optional) | |
| Lighting | Interior LED waterproof cabin lights + work light at door | |
| Insulation Door | Gas struts, lock-box, anti-pinch; freeze-resistant seals | |
| Chassis | , ABS, power steering | |
| Application | Store-door and convenience supply | |
| Options | Meat hanging rails, partition bulkhead, side tail lift, E-track, diesel backup unit | |
| Docs & Warranty | GB announcement + tax exemption; 2-year upfit warranty | |
| Cargo Box Material | Outside fiber glass plate and middle insulation layerand inside fiber glass plate. | |
| Cargo Box Size | 2795X1545X1535 | |
Key Upfit Features
Factory Direct CLW Chengli, Suizhou — ISO 9001 & CCC certified | MOQ 1 Unit Mixed batch and stock chassis available | Export Ready SEA / Ro-Ro / container + full documents | Lifetime Support Genuine parts and remote commissioning |
