Aerial Work Vehicle

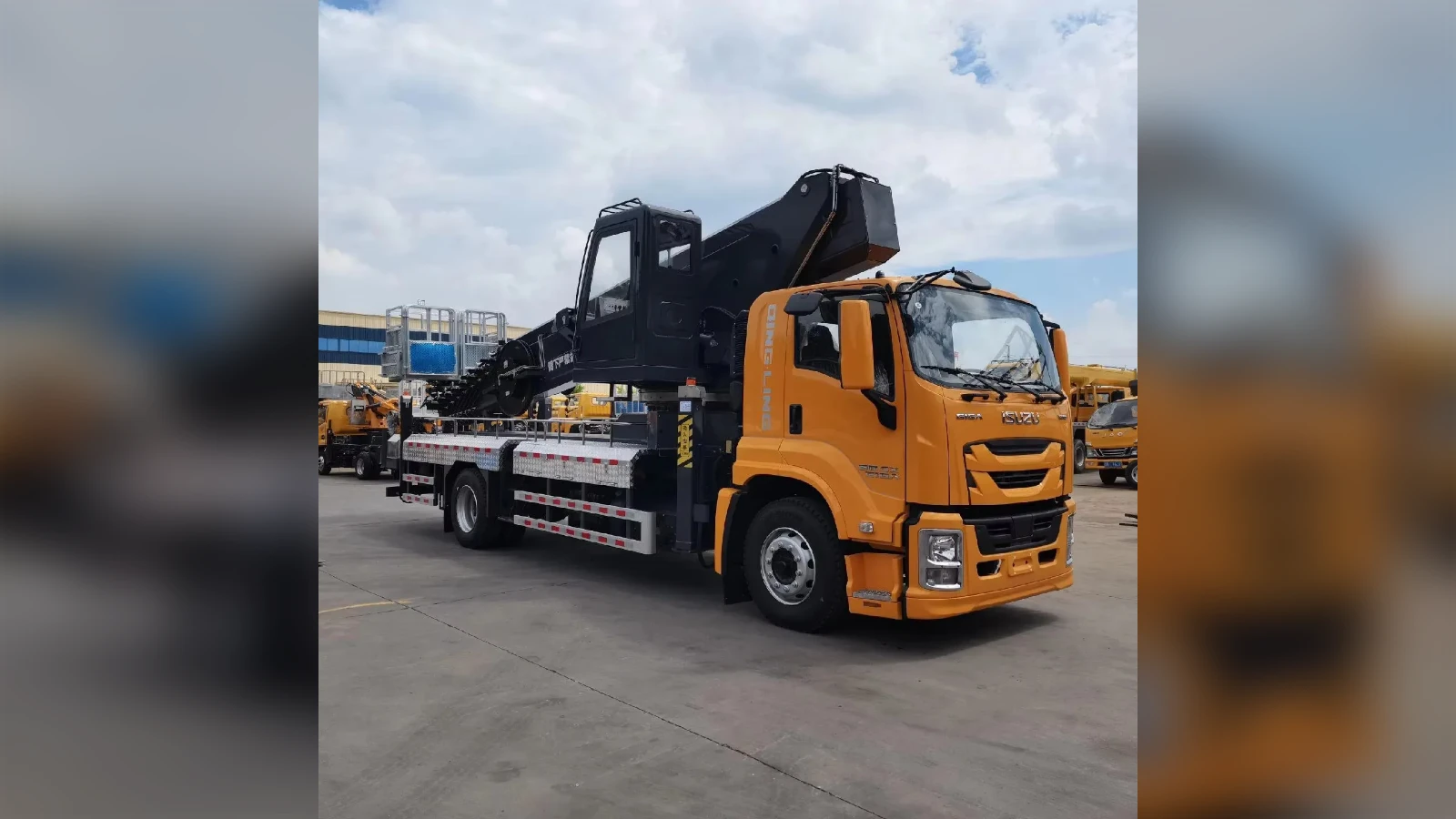

ISUZU 4x2 32m Telescopic Aerial Platform for Utility Crews

Telescopic reach to 32 m separates this Isuzu 4x2 aerial platform from knuckle machines: a maximum working radius up to 15 m at height comes from the multi-section boom carrying a 200 kg insulated basket rated for two people, slewed continuously 360 degrees. X-type four-point outriggers, telescopic interlocks, overload limiter and wind speed alarm police the envelope; upper and lower dual stations with emergency descent provide redundancy, and PTO-driven hydraulics work at engine idle. The GIGA-class diesel chassis pairs a six-speed Isuzu gearbox with ABS, 130 hp from 2999 ml against and a 3308 mm wheelbase. Basket winch, 1000 V insulation and documented boom load testing are offered, with a GB aerial-vehicle announcement and load test certificate in the paperwork. The class places this machine where bucket trucks stop short. Power line crews, telecom splicers and tall-mast street-light maintenance define the service.

WhatsApp your destination port - FOB price within 24 hours, plus the full spec sheet.

Inquiry Now
Reply within 12 hours · MOQ 1 unit · Build 15–30 days · Tell us your chassis, drive, capacity and color needs — we build to order
Factory-direct price (no trader markup) Supports 100% customization 2-year warranty + lifetime parts Full export docs (B/L, CO, invoice)

Telescopic reach to 32 m separates this Isuzu 4x2 aerial platform from knuckle machines: a maximum working radius up to 15 m at height comes from the multi-section boom carrying a 200 kg insulated basket rated for two people, slewed continuously 360 degrees. X-type four-point outriggers, telescopic interlocks, overload limiter and wind speed alarm police the envelope; upper and lower dual stations with emergency descent provide redundancy, and PTO-driven hydraulics work at engine idle. The GIGA-class diesel chassis pairs a six-speed Isuzu gearbox with ABS, 130 hp from 2999 ml against and a 3308 mm wheelbase. Basket winch, 1000 V insulation and documented boom load testing are offered, with a GB aerial-vehicle announcement and load test certificate in the paperwork. The class places this machine where bucket trucks stop short. Power line crews, telecom splicers and tall-mast street-light maintenance define the service.

WhatsApp your destination port - FOB price within 24 hours, plus the full spec sheet.

Telescopic/folding aerial platform with dual control, overload limiter and 360-degree rotation for power, telecom and municipal crews.

ISUZU 4x2 32m Telescopic Aerial Platform for Utility Crews

General

Vehicle Brand

ISUZU

Overall Dimension

6400x2100x2600 mm

Total Mass

7360 kg

Cab

Cab Capacity

3 persons

Air Conditioner

Standard

Engine

Fuel Type

Diesel

Power

130HP

Displacement

2999 ml

Chassis

Drive Type

4X2

Transmission

ISUZU 6-speed

Wheelbase

3308 mm

Top Structure

Working Height

32 m

Working Radius

Max working radius up to 15 m at height

Platform

200 kg insulated basket, 2 persons, 360-degree slew

Outriggers

X-type four-point

Controls

Upper + lower dual stations; emergency descent

Boom Safety

Telescopic interlocks, overload limiter, wind speed alarm

Power

PTO-driven hydraulics, engine at idle

Cab

ISUZU GIGA-class 4x2 diesel, ABS

Application

Power line, telecom and street light crews

Options

Winch in basket, log book boom testing, 1000 V insulation

Docs

GB aerial-vehicle announcement; load test certificate

Bucket Capacity

200 kg

Rotation

360 degree continuous

Key Upfit Features

  • Working Height: 32 m
  • Working Radius: Max working radius up to 15 m at height
  • Platform: 200 kg insulated basket, 2 persons, 360-degree slew

Factory Direct

CLW Chengli, Suizhou — ISO 9001 & CCC certified

MOQ 1 Unit

Mixed batch and stock chassis available

Export Ready

SEA / Ro-Ro / container + full documents

Lifetime Support

Genuine parts and remote commissioning
Send A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Subject : ISUZU 4x2 32m Telescopic Aerial Platform for Utility Crews

Related Products

You may be interested in the following products...

FAQ About Aerial Work Vehicle

How much does this truck cost and what is the MOQ?
CLW is a factory-direct manufacturer, so you get the lowest possible price without middlemen. Final price depends on chassis brand (ISUZU, SINOTRUK, SHACMAN, DONGFENG, FOTON, JAC), tank or body capacity and equipment options. MOQ is 1 unit for most models. Send your requirement via WhatsApp +86 159 6944 9241 for a detailed quotation within 12 hours.
Can you customize the capacity, chassis and upper equipment?
Yes. With 300+ product categories and 800+ models in our MIIT catalog, we customize body capacity, dimensions, unloading systems, PTO, hydraulic equipment and cab options to your local road regulations and working conditions. Our 500+ engineers provide drawings before production.
How do you ship to my country and what is the delivery time?
We export by RoRo vessel, 40FT/40FR/40OT container or flat rack depending on dimensions, to ports in Africa, Southeast Asia, the Middle East, South America and CIS countries. Standard delivery time is 15–30 working days after deposit. Export documentation (BL, CO, CI, packing list) included.
What warranty and after-sales support do you provide?
Two-year warranty on the whole vehicle (engine and gearbox covered per chassis manufacturer policy), lifelong genuine spare parts supply at factory price, free technical training for your maintenance team, and video/online support for installation and debugging.
