Wrecker Truck

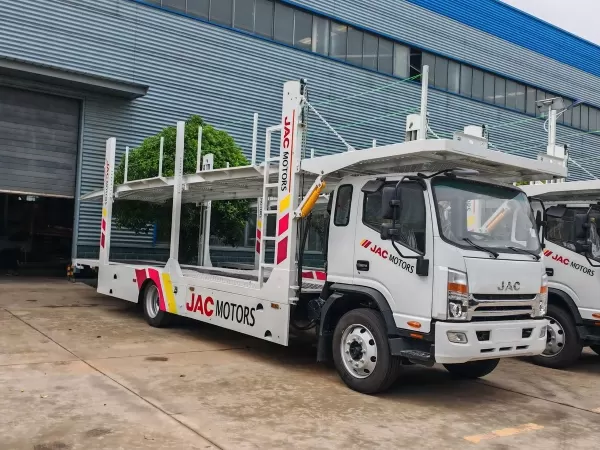

JAC Double Deck Car Carrier Body | Hydraulic Lifting Vehicle Transport Deck

JAC Chassis: HFC4DA1 engine, 2.8L, Euro II, 5-speed manual, GVW 3800kg, payload 3000kg
Superstructure: Double deck, 3000mm width, upper deck 9650mm / lower deck 7775mm, 3-stage hydraulic lifting, Q235 punched steel plate, HG70 high-strength alloy steel structurel.

Inquiry Now
Reply within 12 hours · MOQ 1 unit · Build 15–30 days · Tell us your chassis, drive, capacity and color needs — we build to order
Factory-direct price (no trader markup) Supports 100% customization 1-year warranty + lifetime parts Full export docs (B/L, CO, invoice)

Wrecker Truck, also known as a tow truck, recovery vehicle, breakdown truck, or breakdown lorry, is a specialized vehicle used for towing disabled or improperly parked vehicles. These trucks are equipped with various tools and equipment to safely lift, tow, and transport vehicles from one location to another.

JAC Double Deck Car Carrier Body | Hydraulic Lifting Vehicle Transport Deck

chassis

Engine

HFC4DA1

Displacement

2.8 Liters

Emission

EURO II

No. of Wheels

4

Horsepower

Not specified

Payload Capacity

3000 kg

Length

10 ft

GVW

3800 kg

Transmission

5-Speed Manual

Fuel Type

Diesel

Superstructure Parameters

Flat Deck Width

3000mm

Deck Effective Length

Upper deck net length: 9650mm, Lower deck net length: 7775mm

Vertical Clearance Between Decks

Over 2000mm, Upper deck can fully fold and rest on lower deck

Lifting Structure

3-stage Telescopic Hydraulic Jump Design

Hydraulic Components

9 brand hydraulic cylinders with imported oil seals, Yangzhou Zhongmei hydraulic control valve, high-pressure hydraulic tubing

Deck Plate Material

3mm thick Q235 punched steel plate

High-Strength Structural Parts

4 support columns + 3-stage jump beams made of HG70 high-strength alloy steel

Fixing Fittings

Front & rear fixing chains, 4 support columns

Operation Marking

Bilingual Chinese & English operation labels

Key Upfit Features

✅ Double-deck design maximizes transport capacity, holds up to 4 vehicles
✅ 3-stage telescopic hydraulic lifting system for smooth deck adjustment
✅ Foldable upper deck, can fully rest on lower deck when not loaded
✅ 3mm Q235 punched steel plate deck, anti-slip & durable
✅ HG70 high-strength alloy steel main structure, strong load-bearing
✅ Imported oil seals for hydraulic cylinders, stable & leak-proof
✅ Complete vehicle fixing chains for safe cargo transportation
✅ Bilingual operation labels for easy operation

Factory Direct

CLW Chengli, Suizhou – ISO 9001 & CCC certified

MOQ 1 Unit

Mixed batch and stock chassis available

Export Ready

SEA / Ro-Ro / container + full documents

Lifetime Support

Genuine parts and remote commissioning
