Dump Truck

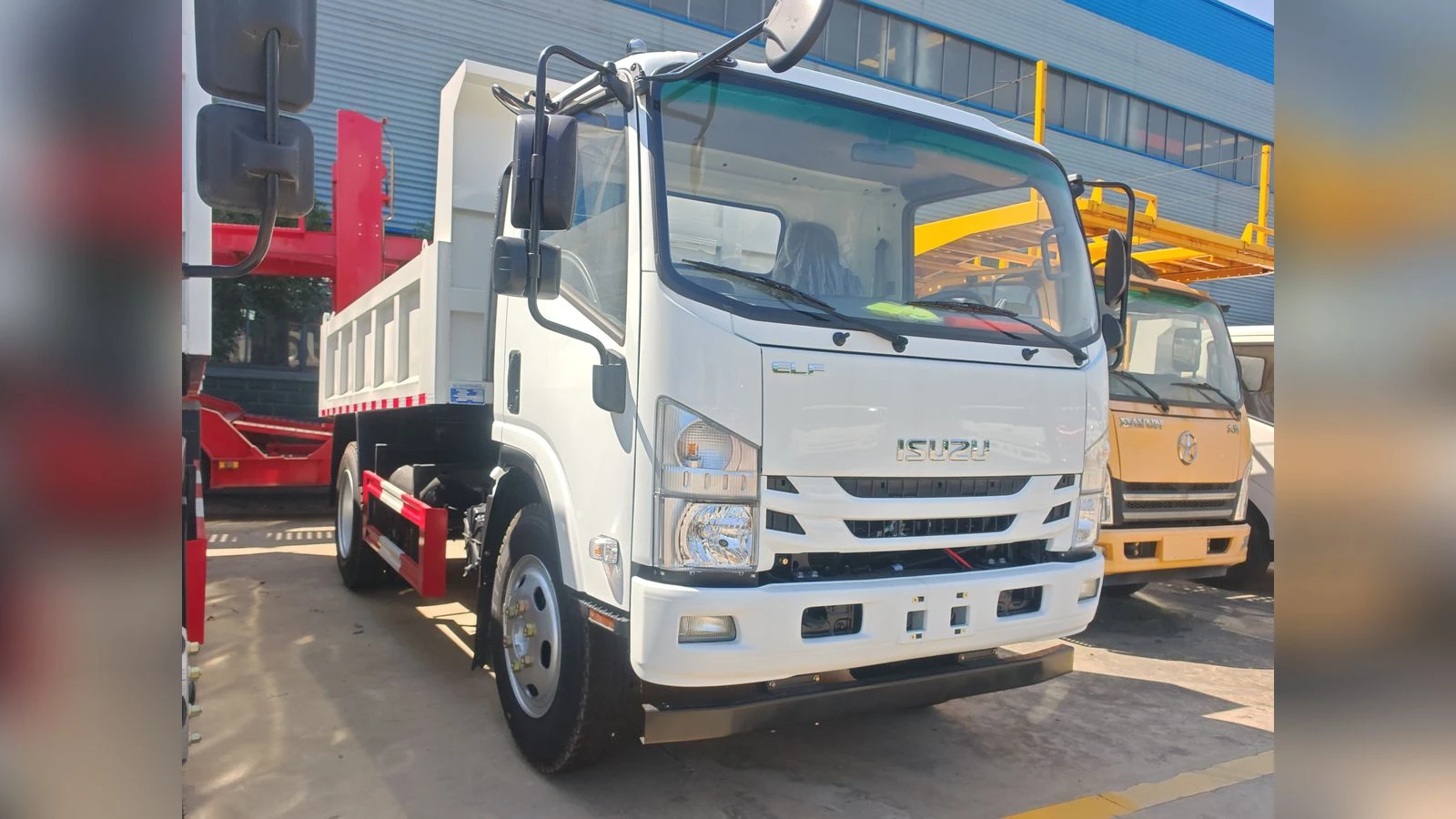

ISUZU 4x4 5cbm Dump Truck for Export | 190HP Euro 6 LHD Tipper Truck with Hydraulic Lifting

ISUZU 4x4 LHD dump truck with 190HP engine (4HK1-TCG61, 507N.m torque), MLD 6-speed manual gearbox, 10550kg GVW, 3360mm wheelbase, and 235/75R17.5 tires. Features 5cbm high-performance carbon dump body (4000x2000x800mm, side 3mm/bottom 5mm), hydraulic middle lifting, 45° lifting angle, 20s lowering time, 15s tailgate, auto release drop side, and detachable painting. Includes air brake, spring energy park brake, engine exhaust brake, 24V electric system, and power steering with A/C.

Optional: dust bin lifting system, rear vision camera, Italy multi-way valve, and stainless steel waste water tank.

WhatsApp your destination port - FOB price within 24 hours, plus the full spec sheet.

Inquiry Now
Reply within 12 hours · MOQ 1 unit · Build 15–30 days · Tell us your chassis, drive, capacity and color needs — we build to order
Factory-direct price (no trader markup) Supports 100% customization 2-year warranty + lifetime parts Full export docs (B/L, CO, invoice)

Heavy-duty tipper body in Q345/wear-resistant steel with hydraulic discharge, reinforced subframe and rock-proof tailgate for mining and earthwork fleets.

ISUZU 700P 4x4 Dump Truck 190HP 12T Tipper with Data-Plate Verified Payload

General

Cab

Single row cab, 2 seats, with power steering, USB, AC

Driving Type

4x4, left hand driving

Max Speed

95 km/h

Overall Dimension

6180 x 2260 x 2580 mm

Dimensions of Dump Body

4000 x 2000 x 800 mm

GVW

10550 kg

Curb Weight

5000 kg

Wheelbase

3360 mm

Passengers in Cab

3

F/R Track Base

1680 / 1650 mm

F/R Overhang

1110 / 1710 mm

Approach/Departure Angle

15 / 20 °

Tire

235/75R17.5, 6+1 tire

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gearbox

MLD 6-speed, manual

Multi-way Valve

Yangzhou Zhongmei Hydraulic

Engine

Model

4HK1-TCG61

Power

190HP / 150KW

Max Torque

507N.m / 2600rpm

Fuel Type

Diesel

Fuel Capacity

100L

Type

Water-cooled four-stroke, direct injection, turbocharged

Exhaust

5193 ml

Bridge

Front Axle

4T

Rear Axle

7T

Braking System

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary Brake

Engine exhaust brake

Dump Performance

Loading Capacity

5 cbm

Dump Body

4000 x 2000 x 800 mm

Body Material

High performance carbon

Thickness

Side 3, Bottom 5

Lifting Style

Hydraulic

Discharging System

Middle lifting device

Lifting Angle

45 degree

Lowering Time

20s

Tailgate

15s

Drop Side

Auto release

Painting

Detachable

Key Upfit Features

    • Powerful ISUZU 4x4 Chassis: 4x4 LHD configuration with 190HP engine (4HK1-TCG61, 507N.m torque), MLD 6-speed manual gearbox, 10550kg GVW, and 235/75R17.5 tires for superior off-road and construction performance.

    • 5cbm High-Performance Dump Body: 4000x2000x800mm carbon steel body with side 3mm and bottom 5mm thickness, hydraulic middle lifting device, 45° lifting angle, 20s lowering time, and 15s tailgate for efficient loading and unloading.

    • Reliable Braking & Safety: Compressed air service brake, spring energy park brake, engine exhaust brake, and 24V electric system for safe operation in demanding conditions.

    • Comfortable & Practical Cab: Single row cab with 3 passengers, power steering, USB, A/C, and hydraulic steering with power assistance for reduced driver fatigue.

    • Flexible Optional Equipment: Dust bin lifting system, rear vision camera, Italy import multi-way valve, and stainless steel waste water tank available based on customer requirements.

Factory Direct

CLW Chengli, Suizhou – ISO 9001 & CCC certified

MOQ 1 Unit

Mixed batch and stock chassis available

Export Ready

SEA / Ro-Ro / container + full documents

Lifetime Support

Genuine parts and remote commissioning
